Post Seal Vision Handler

The osRRS series is designed with advanced key technologies to provide for Reel-to-Reel Inspection.

osRRS
(Single Camera)

osRRSe
(Dual Camera)

Specification Overview

Model Type	osRRS		osRRSe
Carrier Tape Width	8, 12. 16, 36 mm
Track	Auto Conversion
UPH	> 50,000		> 65,000
Camera	Single		Dual
Inspection Criteria	Tape Seal	Unit	Package	Lead	Carrier Tape
	Broken/ Open Seal	Wrong Orientation	Scratch	Lead Length	Sprocket Hole Damage
	Seal Line Position	Wrong/ Mixed Mark	Chipped Off	Lead Pitch	Cover tape Shift
	Position Variation	Missing Mark	Void	Missing Lead	Cover Tape Damage
	FM On Seal Line	Mark Quality	Crack	Lead Sweep	Foreign Material
	Seal Line Thickness	Additional Mark	Package Size		Grease on Tape
	Thickness Variation	Mark Shift			Dented **
					Protrusion **
					Damage **
					Burr
					Carrier Tape Size
System Resolution	+/- 10 micron & +/- 22 micron
Min. Detectable Defect Size	40 micron
Reel Size	178 mm (7”) to 330 mm (13”)
Package Type	SOP, BGA, QFP, QFN/MLP, CSP, Back Side Coated CSP, Non-Backside Coated CSP, LED
Sealing Type	Hot/Cold Seal
MTBA	> 60mins
MTBF	> 200 hrs
Marker	Optional
Inker	Optional
Auto Cleaning/Debris Suction	Optional
Microscope Base	Optional

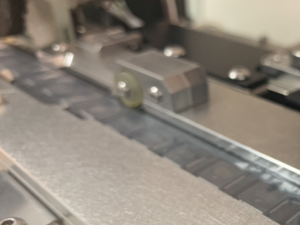

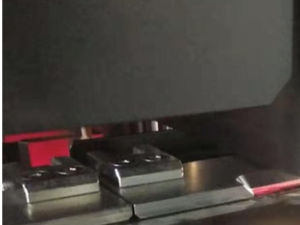

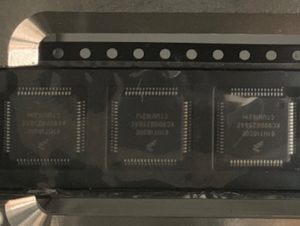

Auto Changeover for Different Carrier Tape Width Auto and easy carrier tape loading for tape width from 8, 12, 16, 24, 32 and 44 mm.	Dual Vision Systems Dual vision systems to perform tape seal inspection, mark inspection, package inspection, lead inspection and bottom carrier tape inspection.	On-The-Fly Vision Systems State of the art On-The-Fly inspection system to avoid bottle neck time
